Nested Wave Spring: Advantages and Industrial Applications

The nested wave spring is a compact, high-capacity spring that supports large loads in confined spaces, ideal for industries such as automotive, aerospace and precision machinery. Its multi-layer design distributes the load evenly, reduces vibration and extends system life.

01/12/2024

The nested wave spring is an innovative solution for applications that require high load capacity in a compact space. Its compact design and mechanical efficiency make it ideal for industries such as automotive, aerospace, and precision manufacturing. This article will explore the nested wave spring, its benefits, and its main industrial applications.

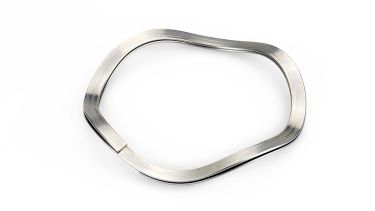

What is a Nested Wave Spring?

A nested wave spring is a type of compression spring comprising multiple overlapping wave layers. Unlike traditional coil springs, these springs can support higher loads in a smaller axial space, offering an efficient solution for applications where size reduction and performance are critical.
A nested wave spring design allows uniform load distribution, reducing material stress and increasing the component's lifespan. Thanks to their ability to absorb vibrations and efficiently distribute forces, these springs have become a superior alternative to conventional springs in many industries.

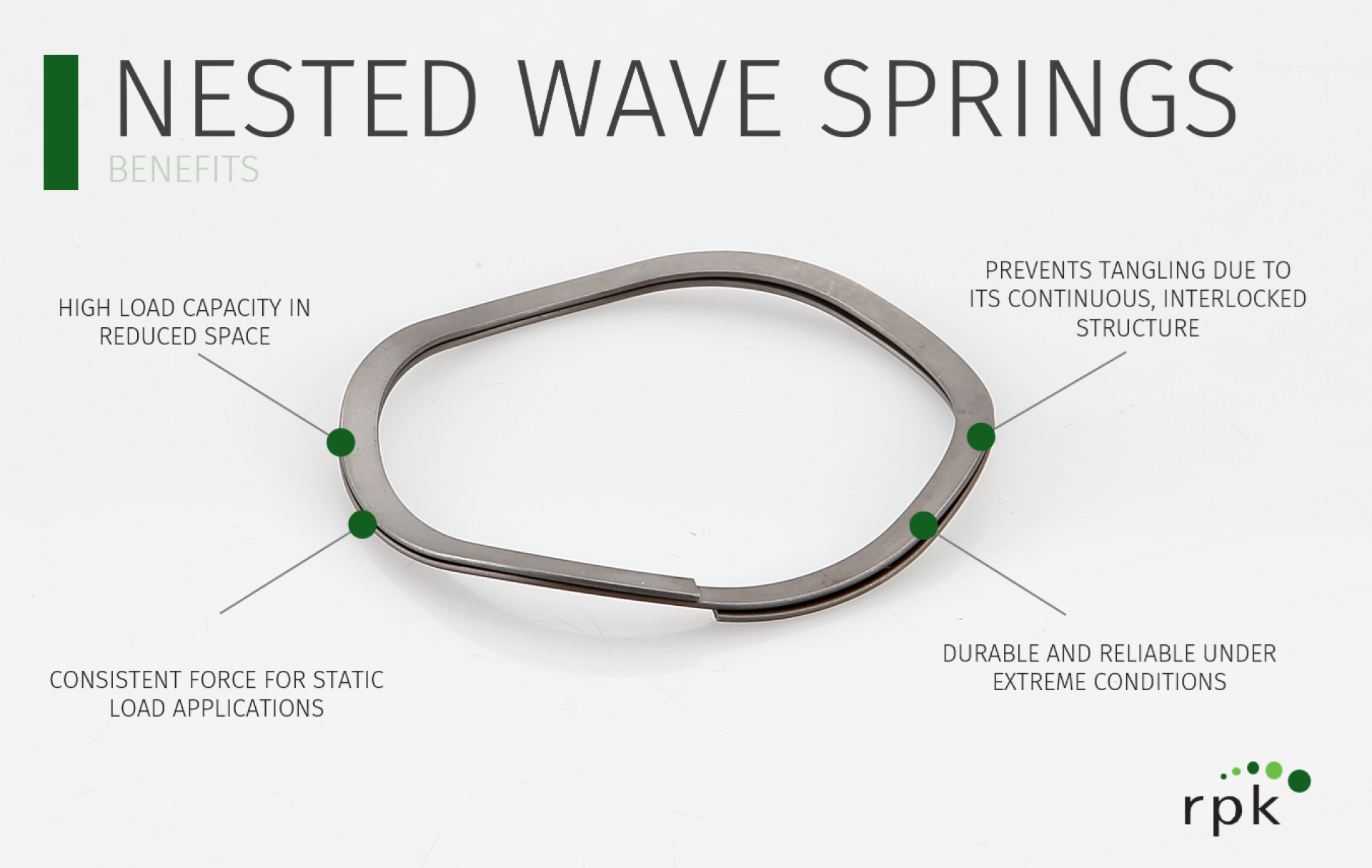

Advantages of the Nested Wave Spring

The nested wave spring offers multiple benefits compared to other spring solutions. Some of its main advantages include:

1.    Higher Load Capacity in Less Space

Thanks to its multilayer design, the nested wave spring can handle significantly higher loads than a conventional spring of the same size. This allows for space optimization and reduced system weight.

2.    Reduced Axial Height

Traditional springs require more axial space to achieve the same load capacity. With a nested wave spring, however, performance can be maintained or improved without increasing the overall dimensions.

3.    Uniform Load Distribution

The overlapping wave design helps distribute the load evenly, reducing wear and extending the spring's service life and related components.

4.    Vibration and Noise Reduction

The nested wave spring is an excellent choice in applications that require quiet operation and minimal vibration. Its structure helps absorb impact and minimize the transmission of unwanted energy.

5.    Customization for Specific Applications

These springs can be manufactured in various materials and configurations to suit different industrial needs. They can be designed using stainless steel, carbon steel, or special alloys to withstand extreme conditions.

Applications of the Nested Wave Spring

The nested wave spring is used across various industries due to its ability to optimize performance in high-demand applications. Some of the most common areas include:

1.    Automotive Industry

In vehicles, nested wave springs are used in clutches, transmissions, suspension systems, and brakes. Their ability to handle high loads in limited space makes them ideal for improving efficiency and reducing overall weight.

2.    Aerospace Industry

In aviation and aerospace, every gram matters. Nested wave springs help reduce weight without compromising strength and are used in flight control systems, landing gear, and other critical components.

3.    Medical Devices and Precision Equipment

Stability and reliability are key in the manufacturing of medical devices and high-precision equipment. Nested wave springs are used in diagnostic systems, surgical robots, and other devices where force control is essential.

4.    Industrial Machinery and Manufacturing

Nested wave springs are used in high-performance machinery, such as presses, valves, and hydraulic systems, where the ability to absorb high forces in limited space is critical to efficient operation.

How to Find the Perfect Nested Wave Spring

At RPK, we manufacture high-precision nested wave springs for a wide range of industrial applications. If you're looking for an efficient, customized solution for your product, contact us and discover how our springs can enhance your system's performance.

Contact our engineering and sales teams. We will help you find the best solution for your applications.
