Clock Spring: Precision and Control in Mechanical Applications

The clock spring is an essential component in numerous mechanical systems that require precision, motion control, and energy storage. Its spiral design enables a gradual buildup and release of force, making it an efficient solution for high-precision devices across various industries.

What Is a Clock Spring?

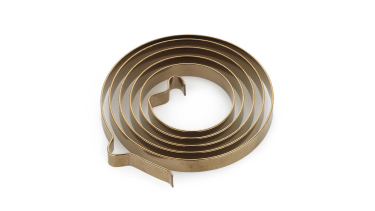

A clock spring is a spiral-shaped torsion spring made from high-strength strip material or flat rolled wire. It is designed to deliver controlled torque as it winds and unwinds. Its main function is to store mechanical energy and release it in a controlled manner, ensuring constant and uniform movement in systems that demand precision and durability.

Unlike other types of springs, the clock spring offers a high number of turns in a compact axial space while allowing more room radially, making it ideal for compact and high-efficiency mechanisms. They are also known as spiral torsion springs.

Advantages of the Clock Spring

This type of spring is known for its ability to deliver stable and controlled motion in various devices. Some of its key benefits include:

1. High Energy Storage in a Small Space

Thanks to its spiral design, it can store a large amount of mechanical energy without requiring excessive space. This makes it ideal for applications where size and weight are critical factors.

2. Smooth and Precise Movement

The torque generated by a clock spring is constant and predictable, allowing for precise motion control in mechanical systems. This is crucial for devices requiring synchronization and stability.

3. Long Service Life and Fatigue Resistance

Clock springs are manufactured from materials such as stainless steel or special alloys. They are designed to withstand repeated tension and relaxation cycles without compromising performance, thereby ensuring extended operational life.

5. Customizable to Your Application

Clock springs can be tailored to specific system needs, with adjustable parameters such as material thickness, number of turns, and required torque.

Applications

Clock springs play a crucial role in various industrial sectors where precise motion control and energy storage are essential. Major applications include:

1. Automotive Industry

Used in valve control systems, mechanical actuators, and adjustment mechanisms where regulated, repetitive motion is needed.

2. Medical Devices

Employed in exact equipment such as surgical instruments, dosing systems, and rehabilitation devices.

3. Aerospace Industry

In aerospace applications, clock springs are crucial in component deployment systems, position control, and adjustment mechanisms that require high reliability under extreme conditions.

4. Electronics and Automation

Used in retraction mechanisms, tensioning systems, and safety devices where controlled energy release is key.

Interesting Facts

Clock springs have a broader impact than many realize. Here are some interesting facts:

• Nature-Inspired Design: Their mechanical principles have been compared to those of natural structures, such as vines, which store energy through spiral growth.
• Robotics Applications: Essential in robotic systems requiring precise and repetitive movements, from advanced prosthetics to assembly line robotic arms.
• Space Exploration Use: Used in space probes and satellites to deploy antennas and solar panels precisely, without relying on electrical energy.
• Advanced Materials: In addition to traditional stainless steel, some springs are made with shape-memory alloys, allowing them to return to their original shape after extreme deformation.

Find the Ideal Clock Spring for Your Project

At RPK Group, we manufacture high-precision clock springs tailored to each application's specific needs. If you're looking for a reliable and efficient solution, contact us to discover how our springs can optimize your product.
